| 盆架:塑料，塑膠 |

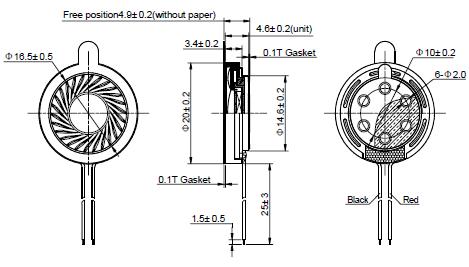

| 尺寸規(guī)格(直徑x高):20x4.9mm |
| 輸出聲壓水平:90±3db (at0.1m,0.1w)at 500,800,1000 HZ average. |
| 測試條件: sin swept measurement at 0.1w on axis at 0.1m. |
| 阻抗: 8±15% ?(at 1kHZ 1v) without baffler. |
| 額定功率:0.7w.最大功率:1.0w. |
| 共振頻率( fo ):700±20%HZ at 1v.( no baffle ) |
| 頻率范圍: fo～20k HZ (deviation 10 db from average s.p.l.) |
| 失真度: less than 5% at 1kHZ, 0.5w |
| 額定輸入: 2.4v. |
| 共振頻率: 170±10HZ at 2.4v. |
| 震動標準: 4.5m/s2 min. at 200HZ. 2.4v. |
| 操作: 2.0v at 100 to 200HZ. |
| 操作溫度范圍:-30℃ to +70℃ |
| 存儲溫度范圍: -40℃ to +80℃ |
